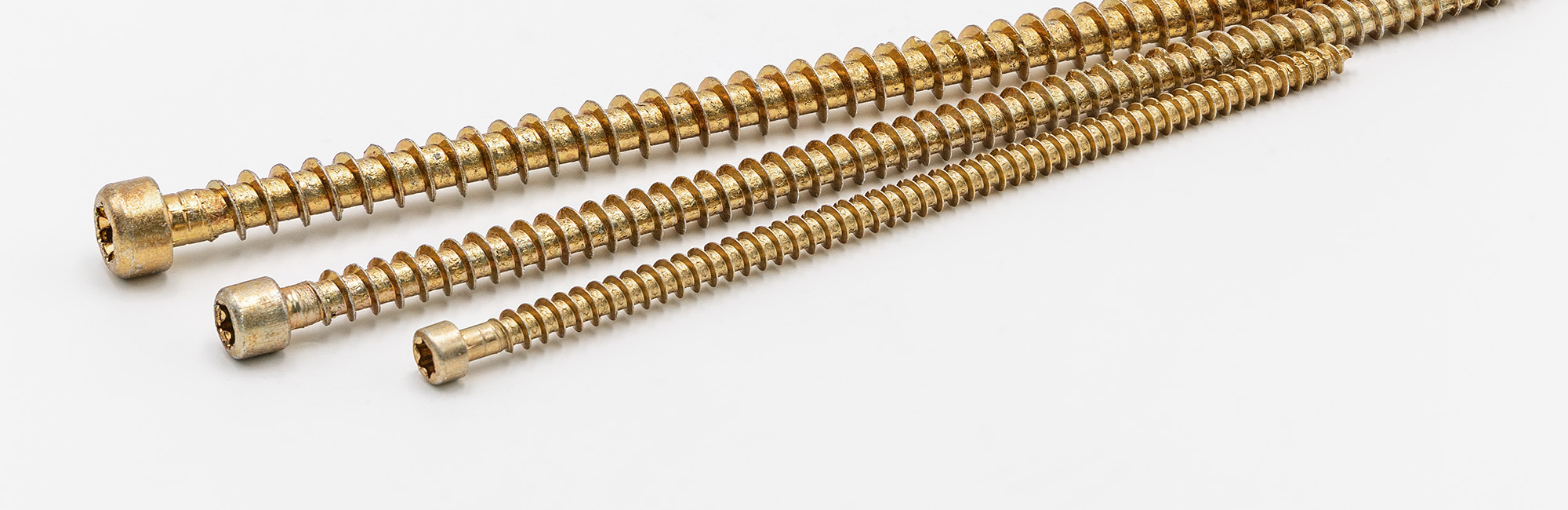

RAPID® FT CL

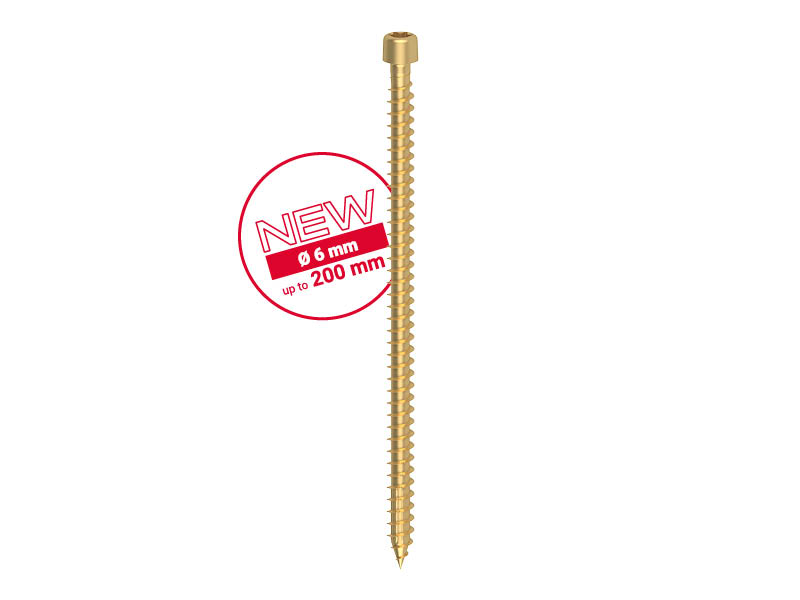

NEW in our range: ø 6 mm
Features
Cylinder head
- Reduced splitting to prevent wood surface splintering
- Head can countersink deep into wood with a long bit
- Improved force transfer thanks to deep T-drive (T30)
Fullthread
- Constantly low screw-in torque
- Excellent thread withdrawal and pressure values
- Maximum load-bearing capacity
Patented tip – no pre-drilling necessary
- Self-drilling with compressor tip
- Reducing splitting
- 50 % lower screw-in torque
- Fast drilling into wood
Surface
- YellWin 500+
- Cr[VI]-free
- Anti-fritction coating
Dimensions
- ø 6 x 80 mm
- ø 6 x 100 mm
- ø 6 x 120 mm
- ø 6 x 140 mm
- ø 6 x 160 mm
- ø 6 x 180 mm
- ø 6 x 200 mm
Applications

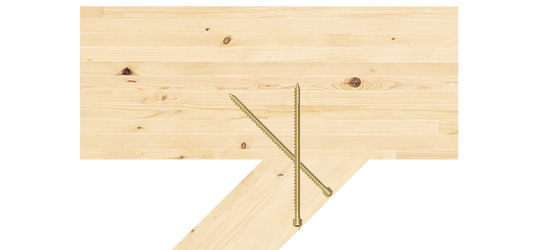

CONNECTION OF BRACE
Fully threaded screws increase the load capacity and significantly stiffen the connection.
Fully threaded screws increase the load capacity and significantly stiffen the connection.

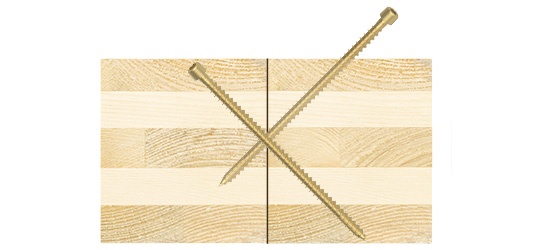

CROSS LAMINATED TIMBER (CEILING RIB)
Shear-resistant crosswise screwing for cross laminated timber ceilings.
Shear-resistant crosswise screwing for cross laminated timber ceilings.
